Name the rhythm

M

med109

Forum Crew Member
Messages
54
Reaction score
1
Points
0
Saw this on Paramedics on Facebook. Lots of interesting answers. I thought I would see what everyone here says. No patient information, the poster said he said it was "this" and the Dr did not agree. The poster has yet to mention what him or the Dr thought the ryhthm to be.

This is a link to the facebook page https://www.facebook.com/#!/photo.p...16783680.50226.117877988247187&type=1&theater

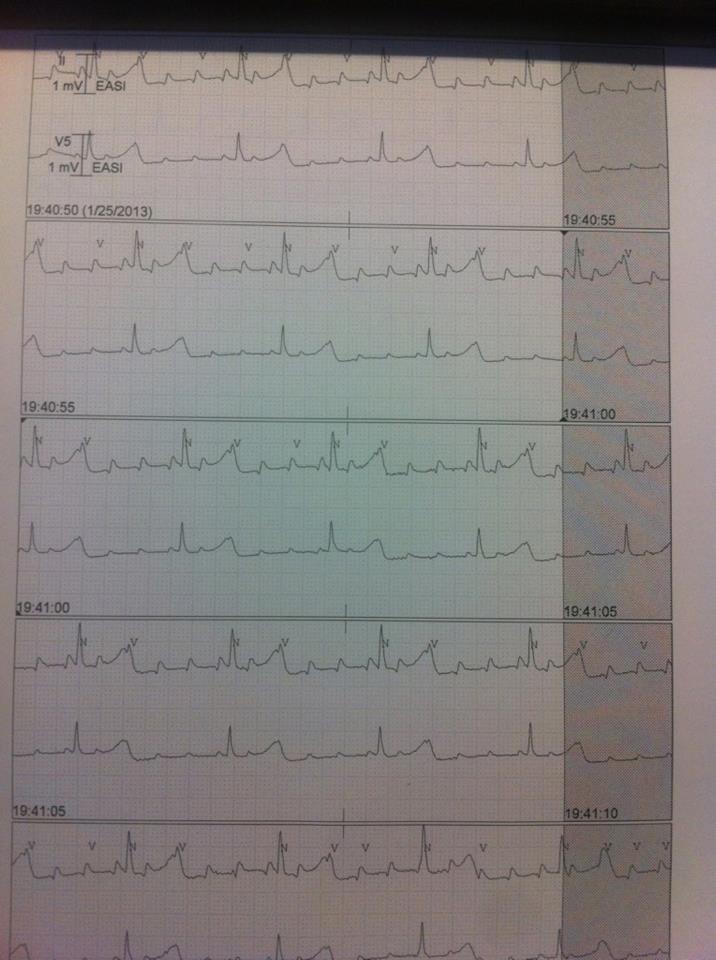

And I added the rhythm as an attachment, not sure how to post the rhythm any other way, sorry


Attachments

  • 156366_523938024307846_1247336692_n.jpg
    67.8 KB · Views: 379
Third degree heart block with a narrow qrs complex

Hmm, consistent PRI, so I'm not thinking 3rd degree. 2nd degree type II with 5:1 conduction. One P buried in the T for each complex. P waves are too slow to be atrial flutter.

Not that this is relevant, but I would absolutely expect this could rapidly deteriorate to a 3rd degree.

Last edited by a moderator:
I'm no TomB, Chase, or Christopher... But I'll take a stab. Atrial rate is floating around 200. PR seems to be fairly consistent. A Flutter with a Mobitz/Type 2 heart block.

Last edited by a moderator:
I always look forward to Tom or Christopher chiming in on these.

Atrial tach with Av block

PoeticInjustice said:
I'm no TomB or Christopher... But I'll take a stab. Atrial rate is floating around 200. PR seems to be fairly consistent. A Flutter with a Mobitz/Type 2 heart block.
Click to expand...

A flutter is one of the answers that was popping up. While I realize flutter isn't always going to be "sawtooth", I have a really hard time seeing those as anything but P waves. Is there a reason you see flutter?

PoeticInjustice said:
I'm no TomB, Chase, or Christopher...
Click to expand...

I am not worthy to be listed among those two but thanks anyway :D

I think you are on the right track. Think about the atrial rates for the various atrial arrhythmias

Chase said:
I am not worthy to be listed among those two but thanks anyway :D

I think you are on the right track. Think about the atrial rates for the various atrial arrhythmias
Click to expand...

All three listed are far better than I ;)

Yeah, I was just reading up on that when I saw your A Tach post. 240-400 for A Flutter; this doesn't seem to quite make it to that mark. A Tach is 100-250, if my sources are correct. Seems more reasonable.

Last edited by a moderator:
On a side note the strips shown are from a Philips telemetry monitor in "EASI" mode which is basically a derived 12 lead based off an algorithm using a modified 5 lead placement. It is meant to simulate a 12 lead but is not identical to an actual 12 lead and usually not considered diagnostic quality. Just something to keep in mind if things look a little off, especially expected amplitudes and morphologies.

Last edited by a moderator:
In a 3rd degree block, if the ventricular rate and atrial rate can match up on accident. If the ventricular rate is 40 and the atrial rate is 80, it may look like there is a consistent PRI because of how things march out.

I'm stumped...

Last edited by a moderator:
The atrial rate steps out as does the ventricular rate. 3AVB.
