EKG advice
- Thread starter Eric hall
- Start date
tpchristifulli
Forum Crew Member
- 36
- 16
- 8
Without a 12 it's hard to give you anything diagnostic. I would be suspicious of possible Left Ventricular Hypertrophy and some what appears to be S-T depression.
captaindepth
Forum Lieutenant
- 151
- 60
- 28

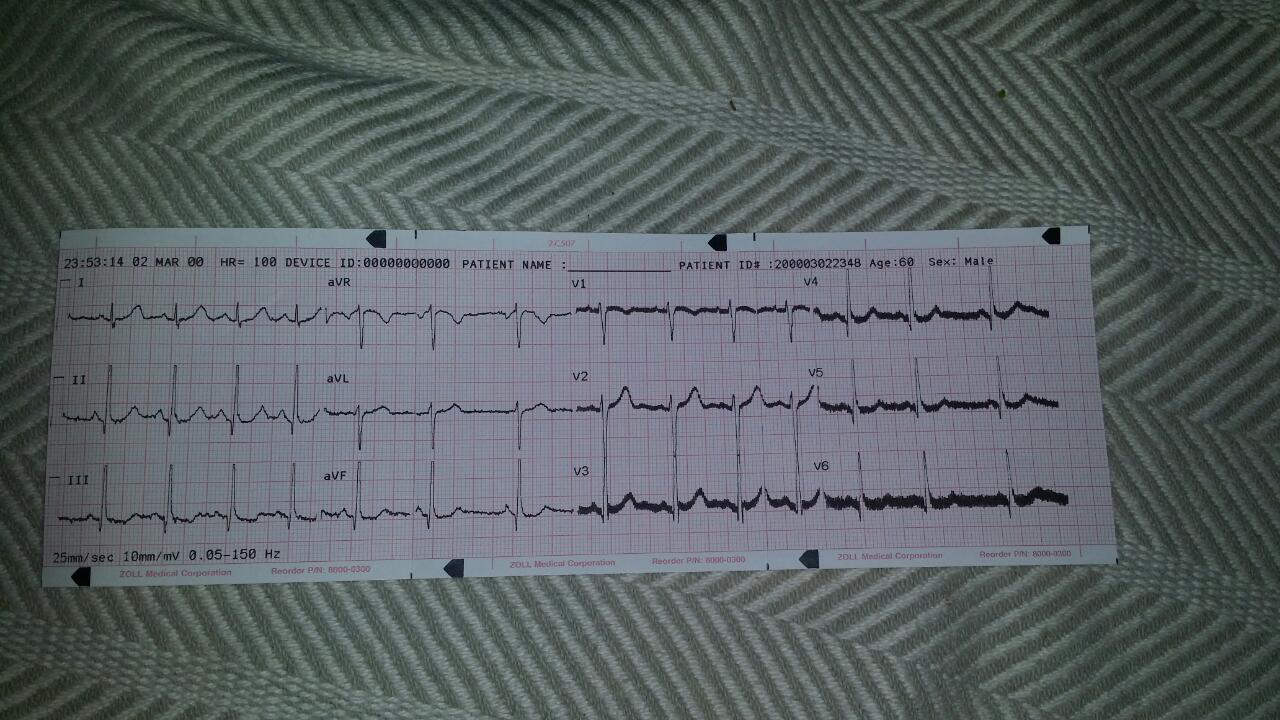

First, this is a zoomed in view of the EKG because the size is amplified by 1.5x.
The rhythm is normal sinus at 76 bpm with ST depression in the inferior leads (3-4 mm of depression but that is with the amplified tracing) and what looks like a hint of ST elevation in the high lateral leads. It would be nice to see the whole 12 lead and at a normal size.
The rhythm is normal sinus at 76 bpm with ST depression in the inferior leads (3-4 mm of depression but that is with the amplified tracing) and what looks like a hint of ST elevation in the high lateral leads. It would be nice to see the whole 12 lead and at a normal size.
teedubbyaw
Forum Deputy Chief
- 1,036
- 461
- 83
Inferolateralseptalrightsided MI.
And a NSR.
And a NSR.
tpchristifulli
Forum Crew Member
- 36
- 16
- 8
I'm more interested in the blood stain on your couch?
captaindepth
Forum Lieutenant
- 151
- 60
- 28
Well that escalated quickly
OP
OP
Eric hall
Forum Ride Along
- 4
- 0
- 1
Thanks for the replies so far, sorry for not having a 12-lead but it's not the best monitor device. Also, that isn't blood merely a stain from the kids lol, I had to double check when I read that however
OP
OP
Eric hall
Forum Ride Along
- 4
- 0
- 1
- 5,018
- 1,356
- 113
60 cycle interference. Is this from a patient, or your own ECG? It sounds like the latter.
Shishkabob
Forum Chief
- 8,264
- 32
- 48
NSR, LVH criteria present, ST-changes in inferior leads that are non-diagnostic.
OP
OP
Eric hall
Forum Ride Along
- 4
- 0
- 1
Yeah it's the latter, it was plugged into a wall outlet charging, which seems to be a common issue.
- 5,018
- 1,356
- 113
Remove whatever electronic device is causing the interference, and take it to your cardiologist. We don't offer medical advice here.
Anjel
Forum Angel
- 4,548
- 302
- 83
Woah there. Look who it is. I'm surprised you remembered your user name and password.
Christopher
Forum Deputy Chief
- 1,344
- 74
- 48
Zoll M/E-Series often exhibit 60-cycle interference when plugged into the wall to charge. I recommend unplugging it or ensuring the notch filter is active. Reviewing the 12-Lead's printout I do not see any mention of a notch filter / mains filter.
The limb leads are recorded in monitor mode, which on a Zoll E/M is pretty aggressive. Something like 1 Hz high-pass and 21 Hz low-pass. This makes for a very distorted view of both amplitude and ST/T-waves. Real time high-pass filters "shift" some of the signal in time, unfortunately the portions of the signal they shift are the portions which have the highest amplitude.
The 12-Lead looks pretty normal to me, excluding the 60-cycle interference. Slight sinus arrhythmia with normal variant ST/T-wave changes.
The limb leads are recorded in monitor mode, which on a Zoll E/M is pretty aggressive. Something like 1 Hz high-pass and 21 Hz low-pass. This makes for a very distorted view of both amplitude and ST/T-waves. Real time high-pass filters "shift" some of the signal in time, unfortunately the portions of the signal they shift are the portions which have the highest amplitude.
The 12-Lead looks pretty normal to me, excluding the 60-cycle interference. Slight sinus arrhythmia with normal variant ST/T-wave changes.
